GFS 200/300/600

GFS 200/300/600

SOLAR ENERGY STORAGE


Description

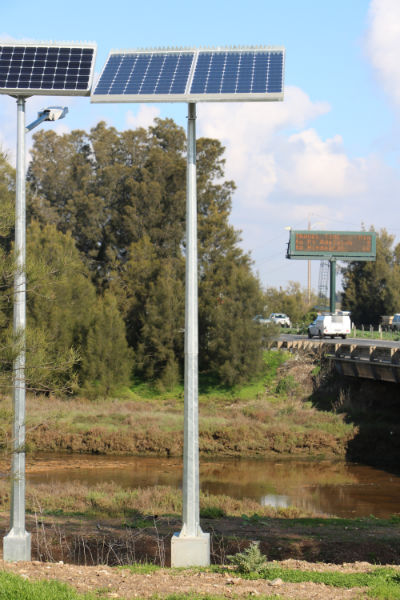

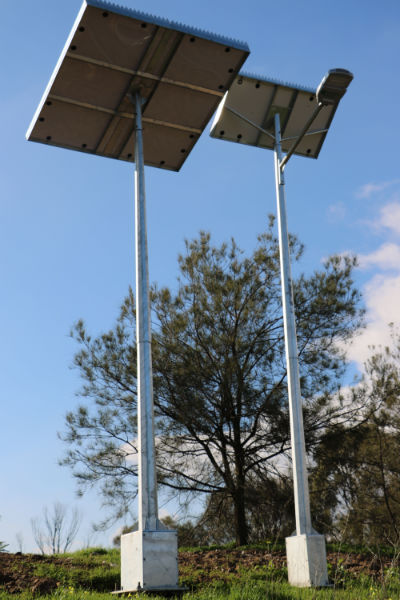

In remote, off grid areas where the weather is tough and unpredictable, you need more than just light from your lighting system. You need a back-up plan for when extreme weather kicks in and your mains power kicks out. Introducing GFS 200, 300 and 600® ES series of Advanced Energy Storage Systems. Robust, impact resistant vandal, corrosion and tamper proof solar panels mounted on a 6-meter pole. Built for industrial spaces, highway underpasses and tunnels. It’s standalone energy storage capability makes it the most efficient, ultra-reliable energy storage systems for remote and off-grid locations.

Technical Information

KEY FEATURES
  • Smart Connected Compatibility
  • Cyclone Weather Rating
  • Intelligent Battery Management System (BMS)
  • Durable Construction & Components
  • Fully Galvanized Reinforced Steel
  • Maximum Power Point Tracking (MPPT)
  • Zero Maintenance System
  • 12 to 48VDC Output
  • In Built Lightning Surge Arrester
  • KEY BENEFITS
  • Extreme Weather Resistance
  • Safe Consistent performance & lifespan
  • Impact Resistant, vandal proof
  • Ultra Reliable. Built to Last
  • Fully customer endorsed
  • Protected against extreme weather
  • 100% Australian Product
  • Unrivaled output regardless of weather
  • Ultra Reliable – No Running Costs
  • APPLICATIONS
  • Mobile Repeater Stations
  • Pumping Stations
  • Lighting Systems
  • OPTIONS
  • 200W
  • 300W
  • 600W
  • TECHNICAL INFORMATION

    KEY FEATURES

  • Zero Maintenance System
  • Easy Installation – Low Voltage 24VDC system
  • VANDAL RESISTANCE

  • Solar Panel – Impact resistant 200w / 300w / 600w solar panels
  • Battery Storage – 10mm plate steel with recessed security screws
  • STEEL WORK & WEATHER RESISTANCE

  • IP65 Weather Resistance – able to withstand full immersion from floods without effecting operation
  • IP68 waterproof connectors
  • Fully Galvanized 3-16mm thick steel, re-enforced metalwork w/stainless fixings
  • Ideal in high winds and cyclone rated areas
  • Underground cage footings included in kit and adhering to Australian standards
  • All nuts, bolts washers, serial number plate, installation manual & security key are supplied in durable transport kit
  • SOLAR PERFORMANCE

  • 200w / 300W / 600w Mono-crystalline solar panel with toughened glass and re-enforced frame, designed for optimum low light and winter performance
  • BATTERY & CHARGING SYSTEM

  • Advanced charging system measures ambient and battery temperature and varies the charge current, increasing battery life expectancy by up to 4X even in desert or tropical environments
  • Over discharge, short circuit, reverse polarity protection
  • 2 x Sealed GEL AGM 75Ah batteries (up to 480Ah) with waterproof connectors
  • PERFORMANCE

  • Designed to charge in overcast / rainy locations
  • Proven performance in tropical, desert, beachfront and wet locations
  • OVERALL DIMENSIONS

  • Total height – 20ft
  • Hole dimensions 2.13ft x 3.60ft (depending on model)
